在nestjs中使用websocket并实现登录鉴权
孙泽辉 Lv5

考试系统需要记录用户作答时间等等,选择使用websocket,并验证用户token。

最近在忙着写毕业论文,选题《基于nodejs的在线考试系统》,九月截稿,现在投了开题报告,万幸没有被退回来。

用了一周时间把教师端做得差不多了,不过还有些统计的API,都是细节,先把框架跑通。有时间总结一下。


现在需要搞考场状态查询之类的,简单点就手动轮询了,它是种反模式,辩证使用吧。

我的情况是:业务复杂,需要实时监测考生作答情况,所以采用websocket

实现

首先用脚手架创建CURD模块,选择WebSockets

1
2
3
4
5
6
7
8
# examination_backend/
❯ nest g res exam-clock
? What transport layer do you use?
REST API
GraphQL (code first)
GraphQL (schema first)
Microservice (non-HTTP)
> WebSockets

exam-clock.gateway.ts中,在连接后验证token

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
import {
WebSocketGateway,
SubscribeMessage,
MessageBody,
OnGatewayDisconnect,
WebSocketServer,
OnGatewayConnection,
ConnectedSocket,
} from '@nestjs/websockets';
import { UnauthorizedException } from '@nestjs/common';
import { Socket, Server } from 'socket.io';

export class ExamClockGateway
implements OnGatewayConnection
{
constructor(private readonly examClockService: ExamClockService) {}

async handleConnection(socket: Socket) {
try {
// 此处调用 service 验证token
const user = await this.examClockService.getUserFromSocket(socket);
socket.emit('connected', user);
} catch (e) {
// 验证失败
return ExamClockGateway.disconnect(socket);
}
}
}

exam-clock.service.ts中,通过token验证用户信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
@Injectable()
export class ExamClockService {
constructor(
private readonly authService: AuthService,
private readonly userService: UserService,
) {}

async getUserFromSocket(socket): Promise<User> {
// 在 socket 中拿到消息头
const token = socket.handshake.headers.authorization;
// 调用 authService 提取 token payload
const decodedToken = await this.authService.verifyJwt(token);
// 去数据库查用户信息
const user = await this.userService.findOneById(+decodedToken.id);
if (!user) {
throw new UnauthorizedException();
}
return user;
}
}

上面提取headers这个写法是socket.io提供的。

添加查询某用户所有考场信息服务,该服务使用ExamRoomModule暴露出来的方法

1
2
3
4
5
6
7
8
9
10
11
12
13
// exam-lock.service.ts
import { ExamRoomService } from '@/exam-room/exam-room.service';

@Injectable()
export class ExamClockService {
constructor(
private readonly examRoomService: ExamRoomService
) {}

async findAll(userId: number) {
return await this.examRoomService.findAll(userId);
}
}

exam-lock.gateway.ts中,获取该用户信息并传入service

1
2
3
4
5
6
7
8
9
10
11
12
13
export class ExamClockGateway
implements OnGatewayConnection
{
constructor(private readonly examClockService: ExamClockService) {}

@SubscribeMessage('findAllExamClock')
async findAll(@ConnectedSocket() socket) {
const user = await this.examClockService.getUserFromSocket(socket);
const result = await this.examClockService.findAll(+user.id);
return ResultData.ok(result);
}
}

到这里查询某用户所有考场信息的后端程序就写完了,继续看前端

前端很简单,用vite创建了个原生项目

1
2
3
4
5
6
7
8
9
10
11
12

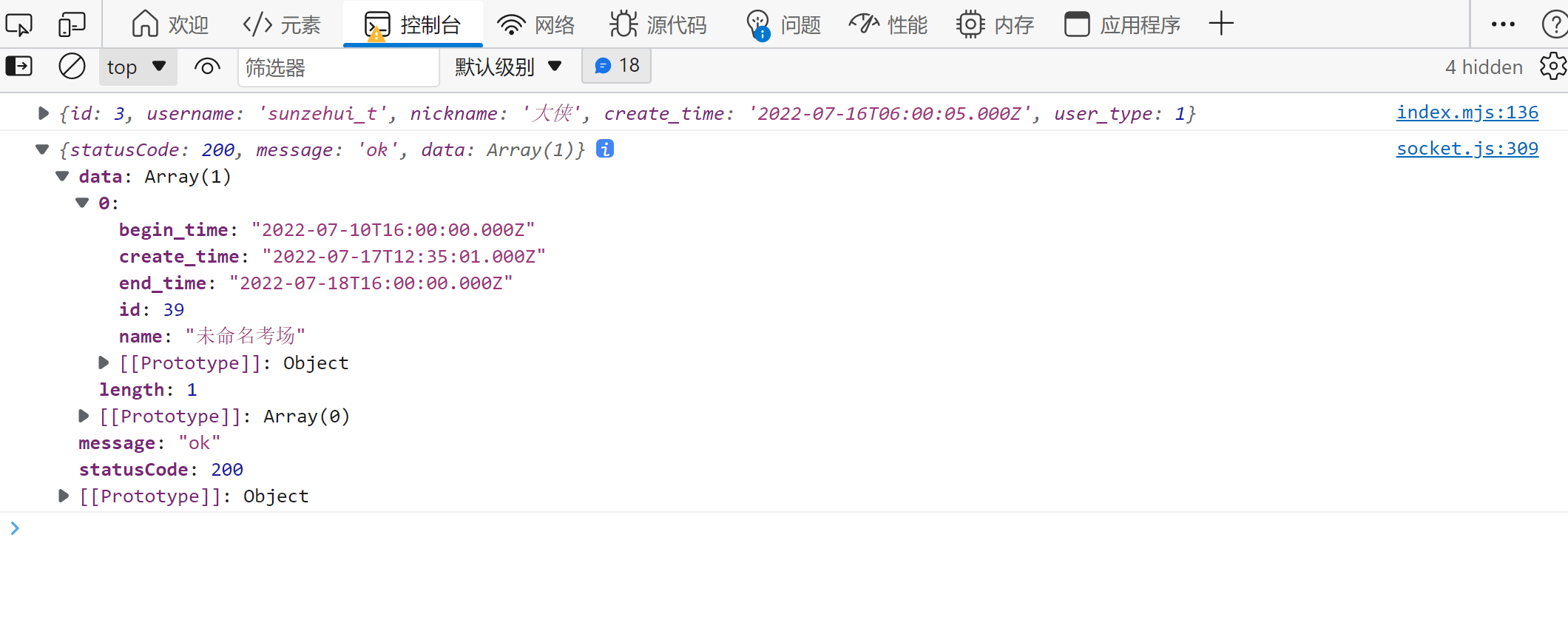

import { io } from "socket.io-client";

const socket = io("http://localhost:3000", {
extraHeaders: {
authorization: "token"
},
});
socket.emit("findAllExamClock", console.log);

socket.on("Error", console.log);

socket.on("connected", console.log);

关于 extraHeaders:Client options | Socket.IO


优化

现在来优化一下代码:

exam-clock.service.ts中,通过token验证用户信息,如果有多个gateway,每个gateway都需要验证用户信息,这样会造成很多冗余,且不利于新增feature后维护,所以将验证用户信息提取出来,我的思路:

写个guard(守卫),验证user后挂到socket上,为了处理异常,创建一个全局异常过滤器,这个是基于BaseWsExceptionFilter的,跟HTTP还不太一样。

验证用户信息守卫

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
// exam-clock/guards/authGuard
import { CanActivate, ExecutionContext, Injectable } from '@nestjs/common';
import { WsException } from '@nestjs/websockets';
import * as _get from 'lodash/get';
import { AuthService } from '@/common/module/auth/auth.service';
import { UserService } from '@/common/module/user/user.service';

@Injectable()
export class AuthGuard implements CanActivate {
constructor(
private readonly authService: AuthService,
private readonly userService: UserService,
) {}

async canActivate(context: ExecutionContext): Promise<boolean> {
const socket = context.switchToWs().getClient();
const token = _get(socket, 'handshake.headers.authorization');
try {
const decodedToken = await this.authService.verifyJwt(token);
socket.user = await this.userService.findOneById(+decodedToken.id);
} catch (e) {
throw new WsException(e.message);
}

return true;
}
}

全局异常拦截器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
import { TokenExpiredError, verify } from 'jsonwebtoken';
import {
ArgumentsHost,
Catch,
UnauthorizedException,
} from '@nestjs/common';
import { BaseWsExceptionFilter, WsException } from '@nestjs/websockets';
import { Socket } from 'socket.io';

@Catch(TokenExpiredError, UnauthorizedException)
export class UnauthorizedErrorFilter extends BaseWsExceptionFilter {
catch(
exception: TokenExpiredError | UnauthorizedException,
host: ArgumentsHost,
) {
const client = host.switchToWs().getClient() as Socket;
const error =
exception instanceof WsException ? exception.getError() : exception;
const details = error instanceof Object ? { ...error } : { message: error };
client.emit('exception', details);
}
}

gateway中使用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
import { ExamClockService } from './exam-clock.service';
import { UnauthorizedException, UseFilters, UseGuards } from '@nestjs/common';
import { ResultData } from '@/common/utils/result';
import { AuthGuard } from '@/exam-clock/guards/auth.guard';
import { UnauthorizedErrorFilter } from '@/common/filter/unauthorized.filter';

// 使用过滤器(也可以放到全局)
@UseFilters(new UnauthorizedErrorFilter())
export class ExamClockGateway {
// ...省略

// jwt守卫
@UseGuards(AuthGuard)
@SubscribeMessage('findAllExamClock')
async findAll(@User('id') userId: string) {
const result = await this.examClockService.findAll(+userId);
return ResultData.ok(result);
}
}

为方便提取userId,遂写装饰器:User

1
2
3
4
5
6
7
8
9
import { createParamDecorator, ExecutionContext } from '@nestjs/common';

export const User = createParamDecorator((data: any, ctx: ExecutionContext) => {
const req = ctx.switchToHttp().getRequest();
// if route is protected, there is a user set in auth.middleware
if (!!req.user) {
return !!data ? req.user[data] : req.user;
}
});

可以跑通,效果同上

总结

参考:API with NestJS #26. Real-time chat with WebSockets (wanago.io)
